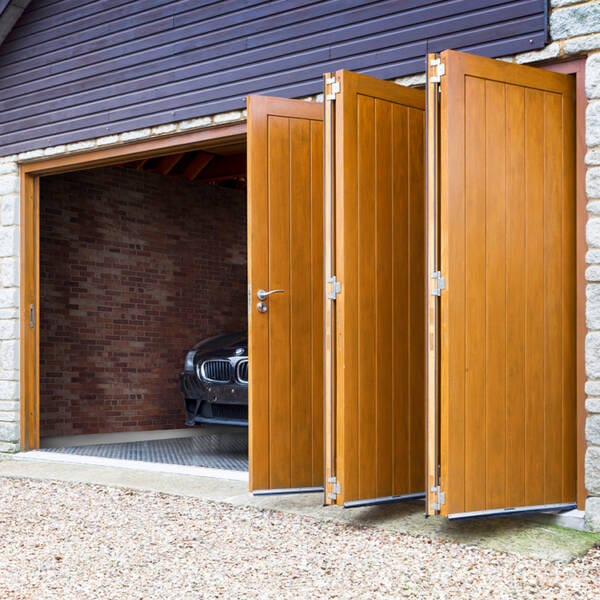

Tommafold 90 – Top Hung Exterior Bi-Folding Door System – Max Door Weight: 120kg
Description
Delivery & Returns
Description
Features:
- Top hung bi-folding door system
- Suited to interior and exterior applications
- 10 year warranty
- Smooth rolling polymer tyres tested to 100,000 cycles
- Hinges tested to 200,000 cycles
- Track is soffit fixed to underside of jamb
- Roller connected to door via heavy duty flush hinge
- Suitable for timber or metal doors
- Track can be joined by butting track together
- Any number of doors can be fitted to the system
- Compact top track (48mm x 56mm)
- Ergonomic hinge handle design for optimal functionality
- Ideal for room dividers in homes, offices and hotels
Specification:
- Max door weight: 120kg
- Max door height: 4000mm
- Max door width: 1000mm
- Min door thickness: 38mm
Kit Contents:
- Aluminium top track (Available in 2m, 3m, 4m and 6m lengths)
- Aluminium bottom channel (Available 2m, 3m, 4m and 6m lengths)
- 1 x Top and bottom hinge pivot for fixed starter panel

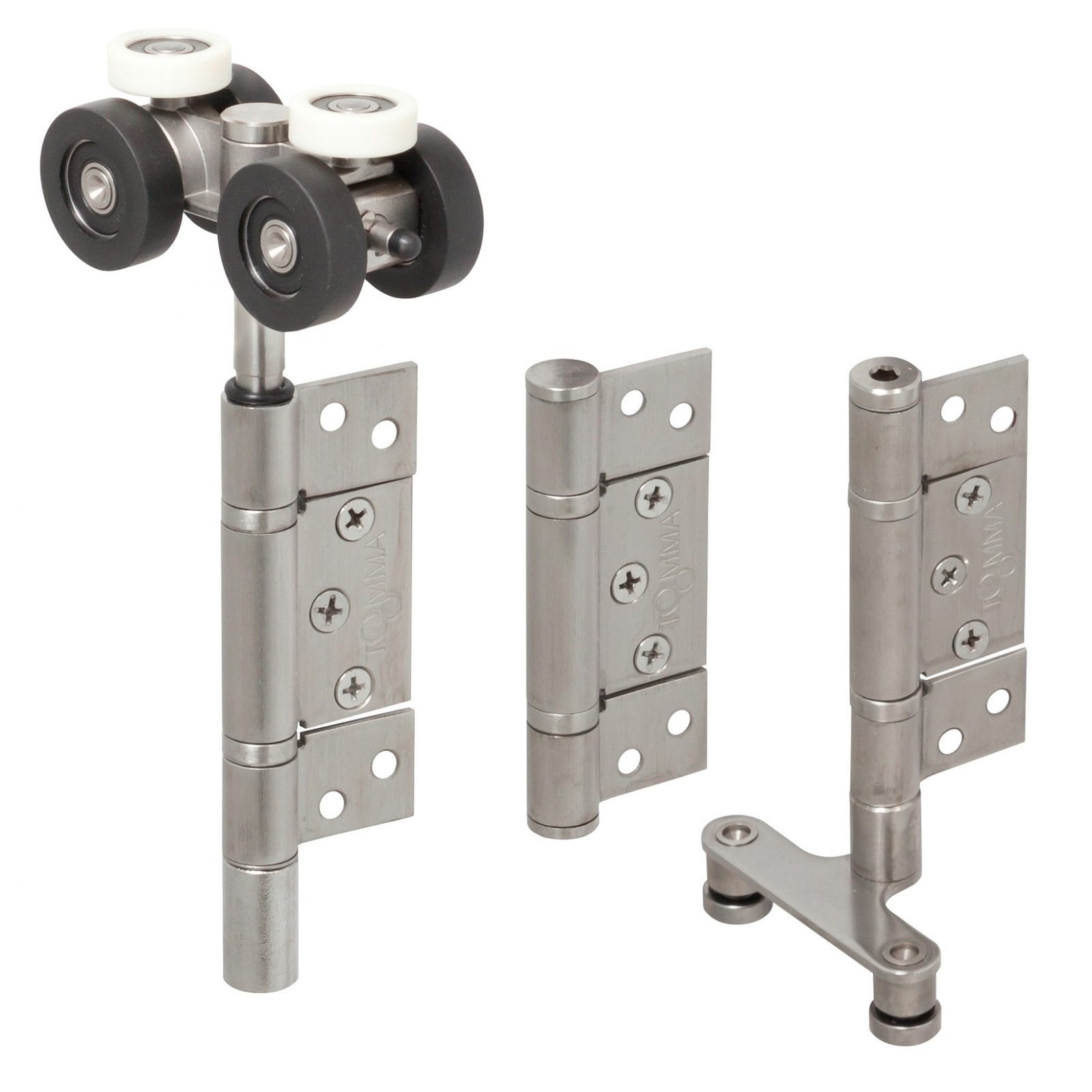

- 1 x Intermediate carrier set including top roller hinge and bottom hinge roller

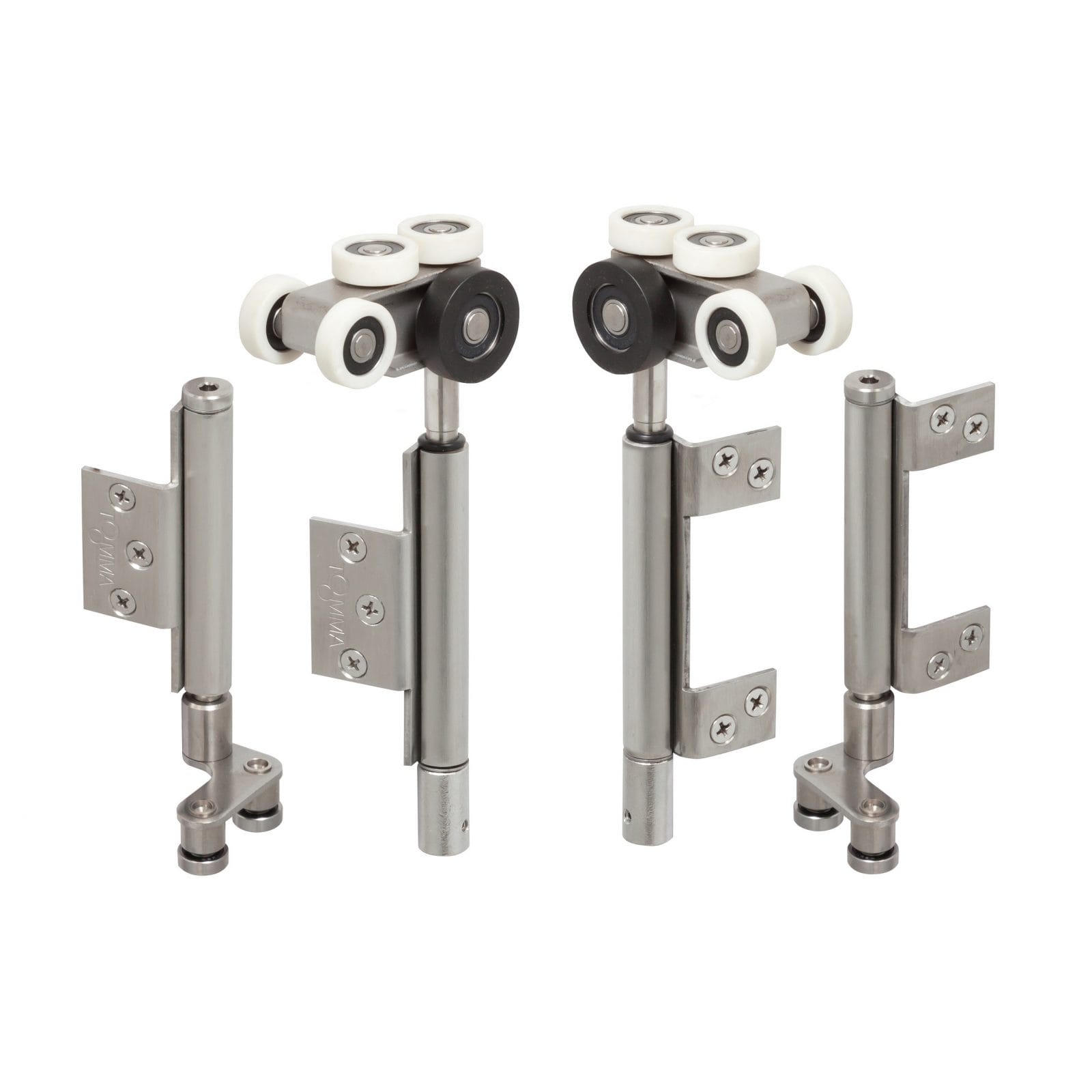

- 1 x end carrier set including top roller hinge and bottom hinge roller for even number of doors

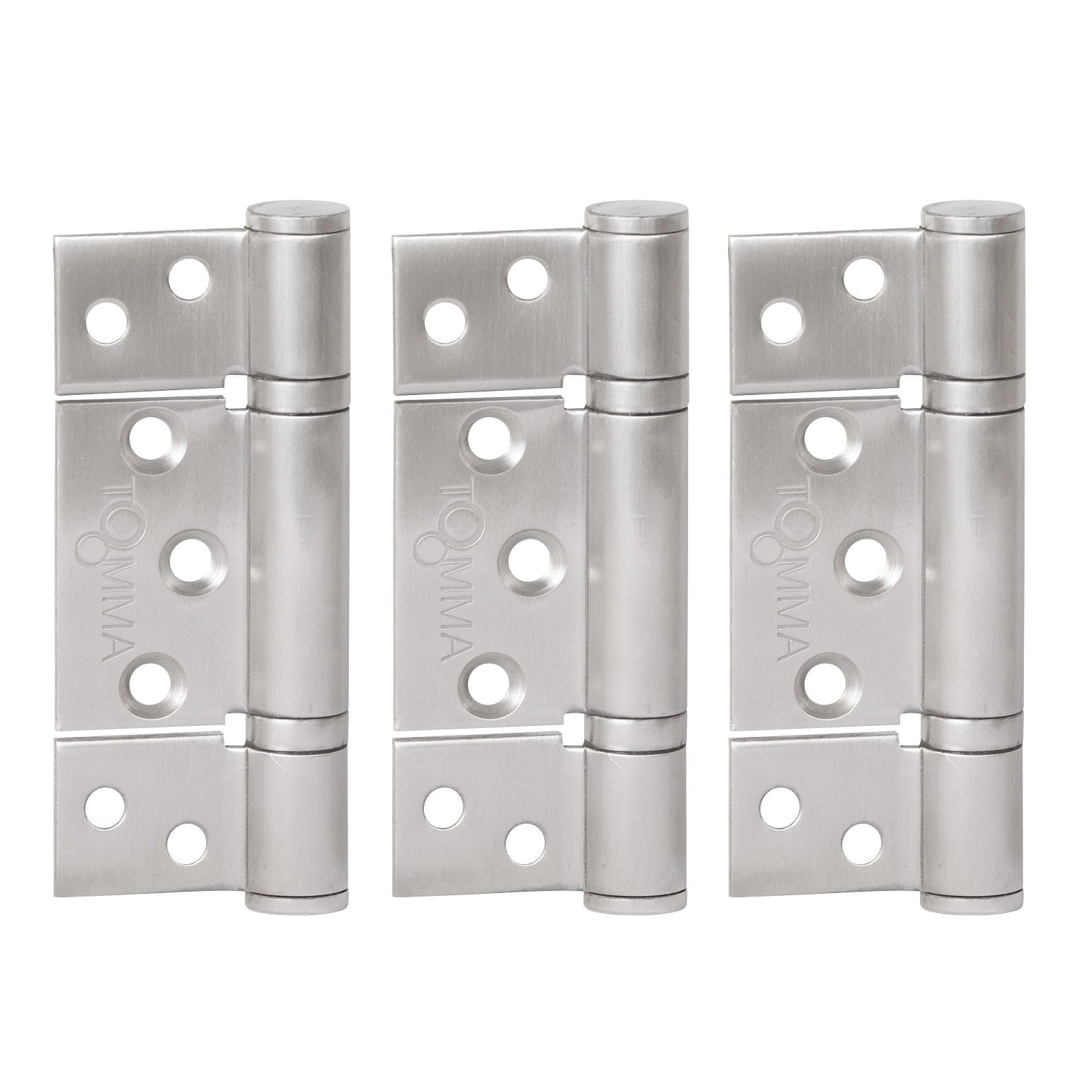

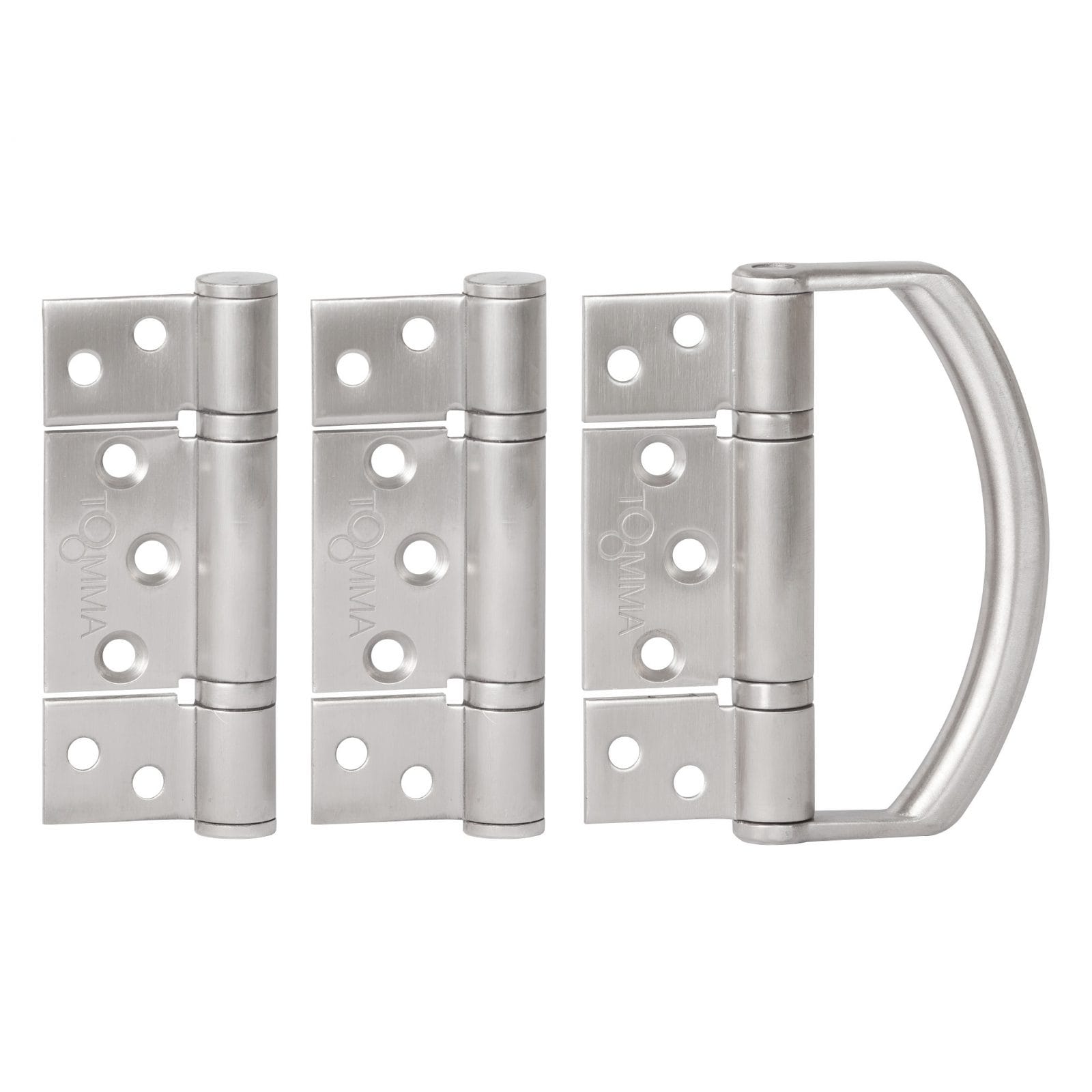

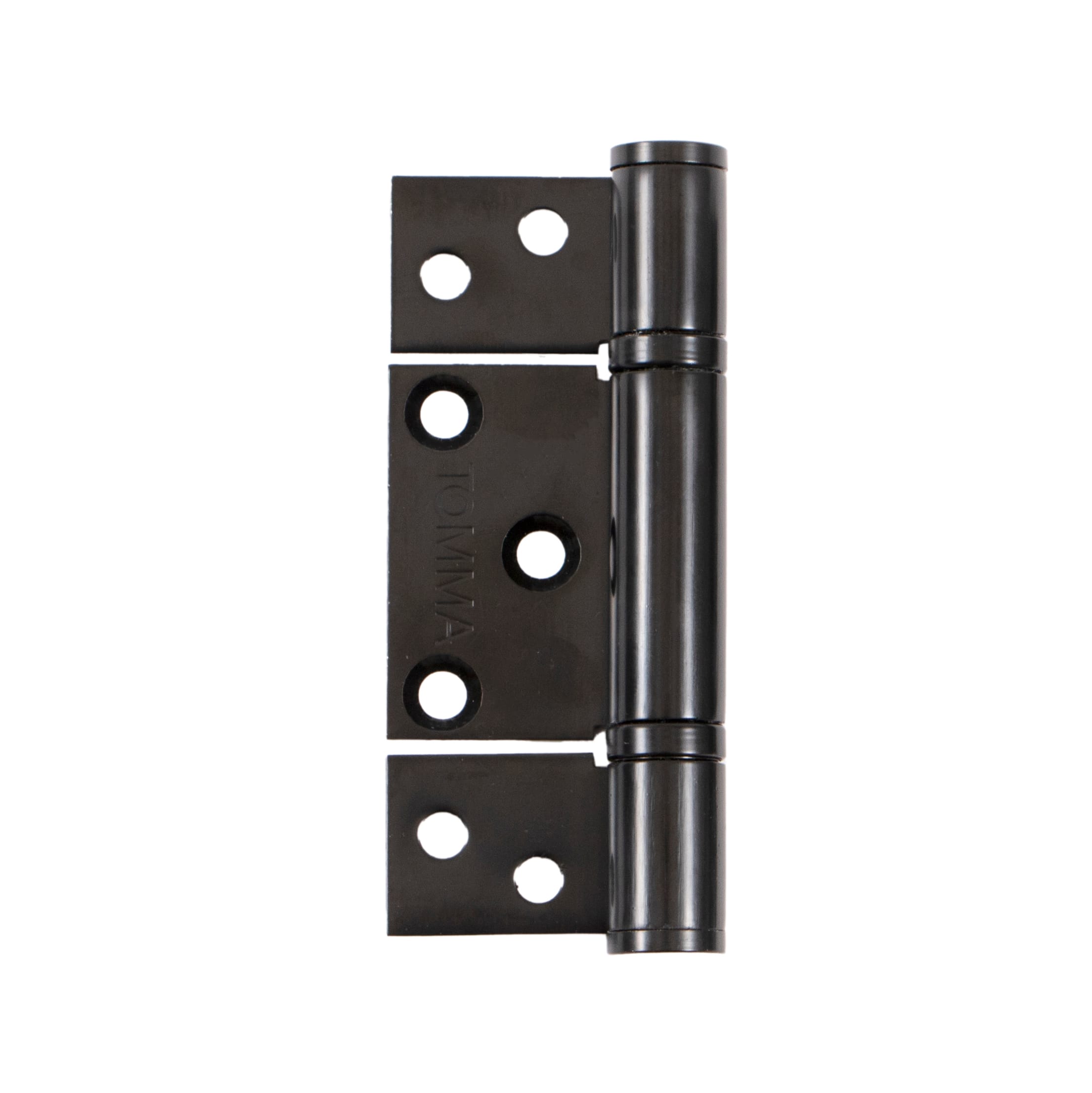

- 3 x flush hinge and screws per join between doors
- 1 x extra hinge for door heights over 2.15m, 2 x extra hinges for doors heights over 2.55mm

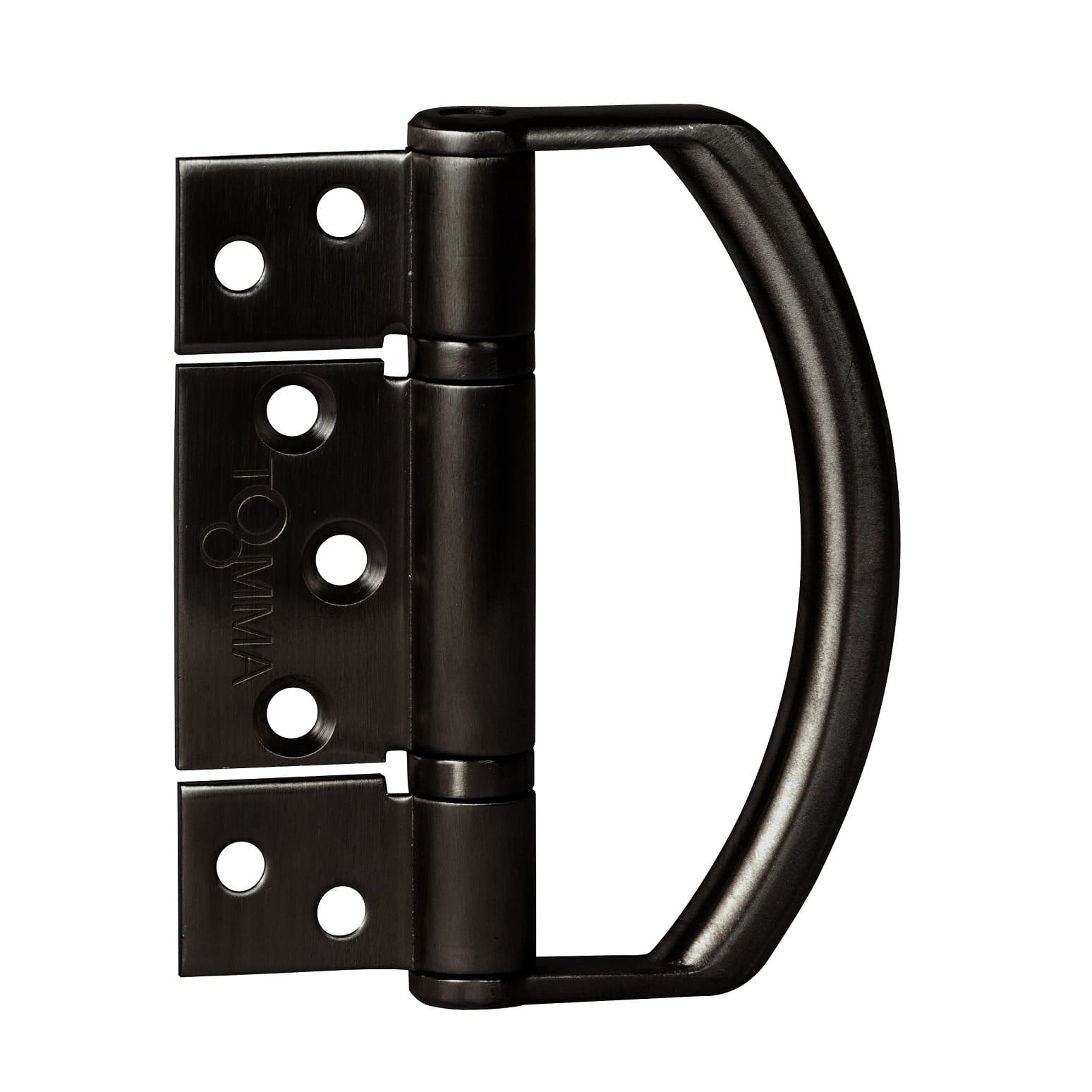

- 1 x hinge handle per join every 2nd door

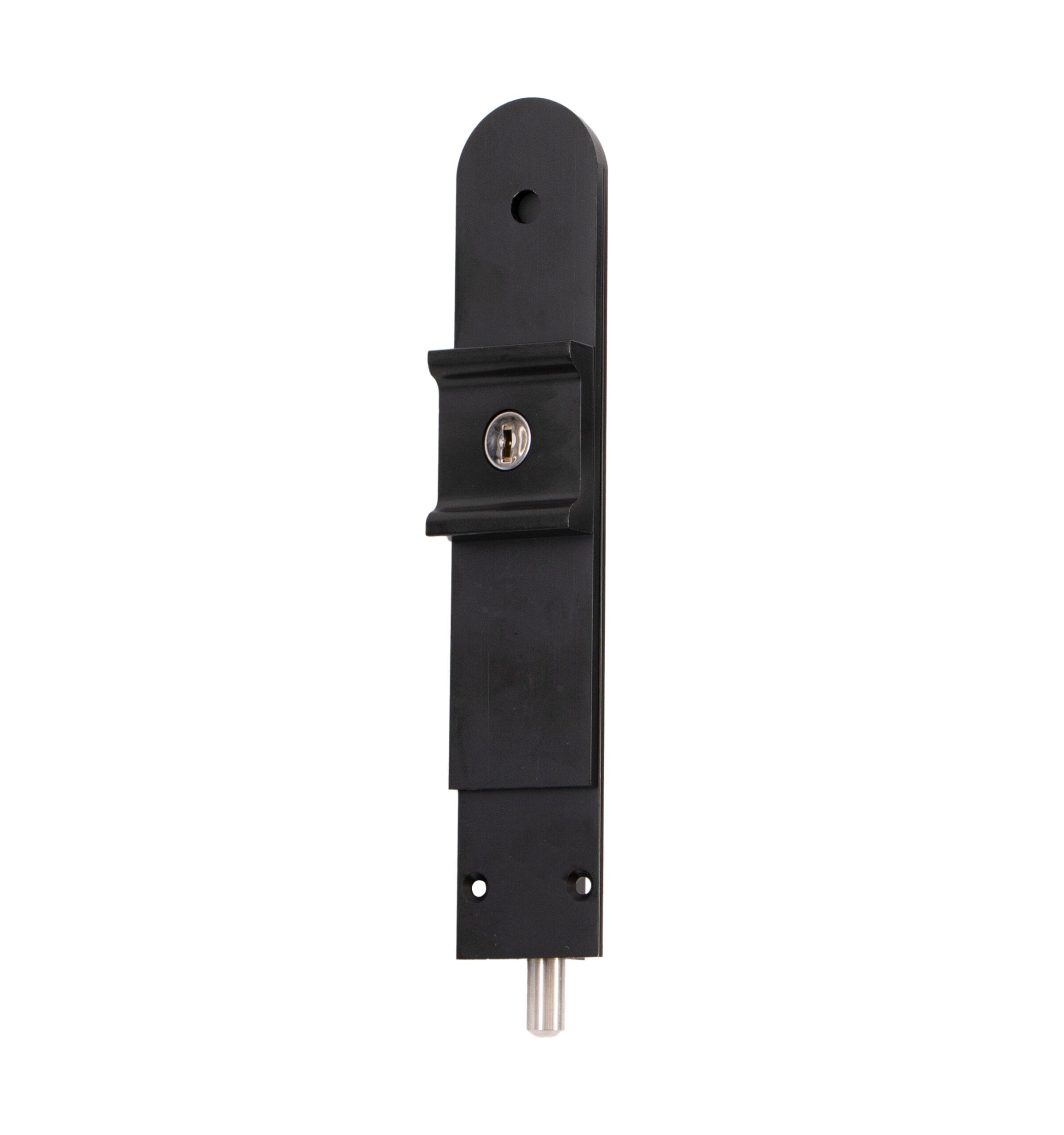

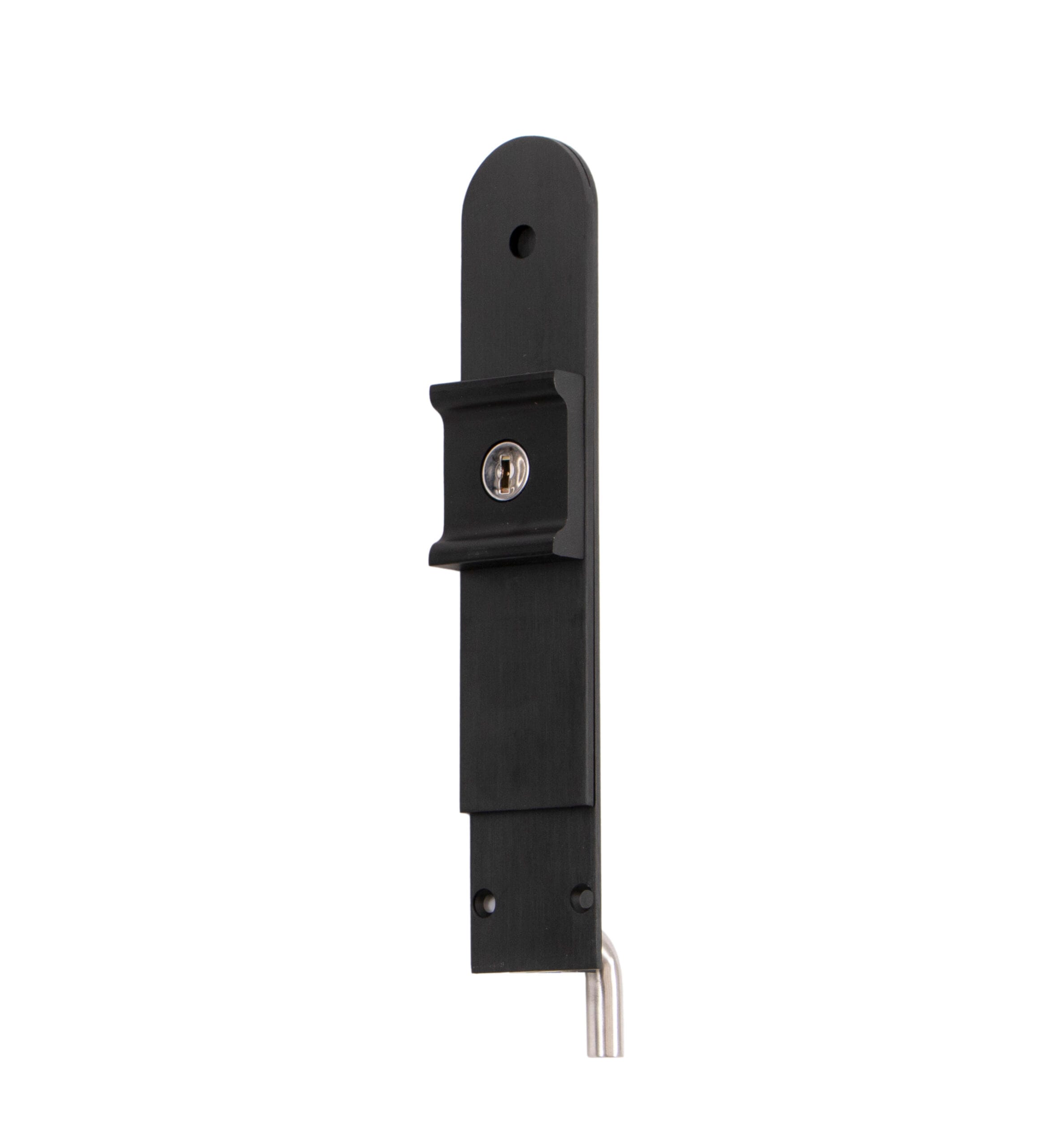

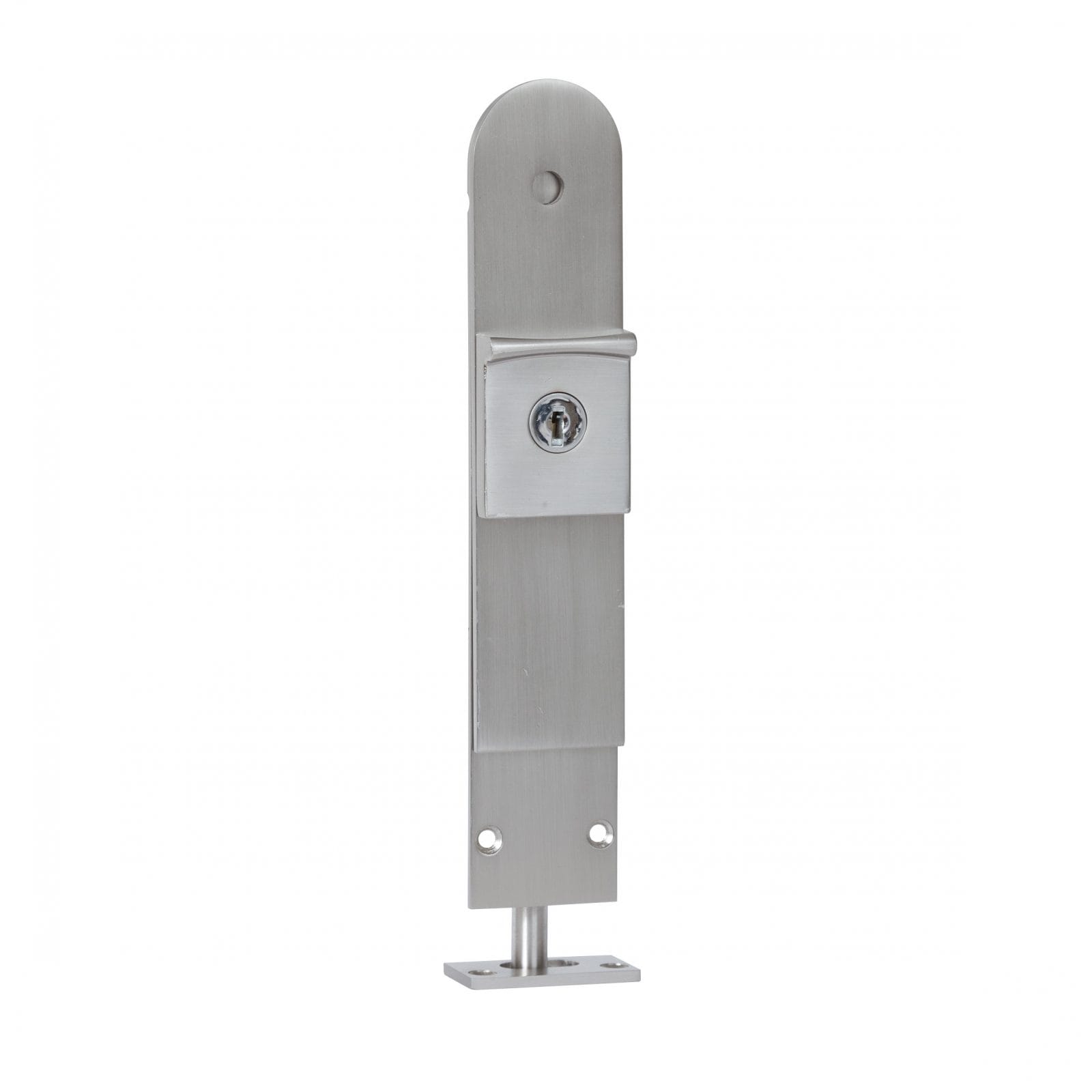

- 1 x locking flush bolt and 1 x non-locking flush bolt on every other join in doors
Kit does not Include Doors
